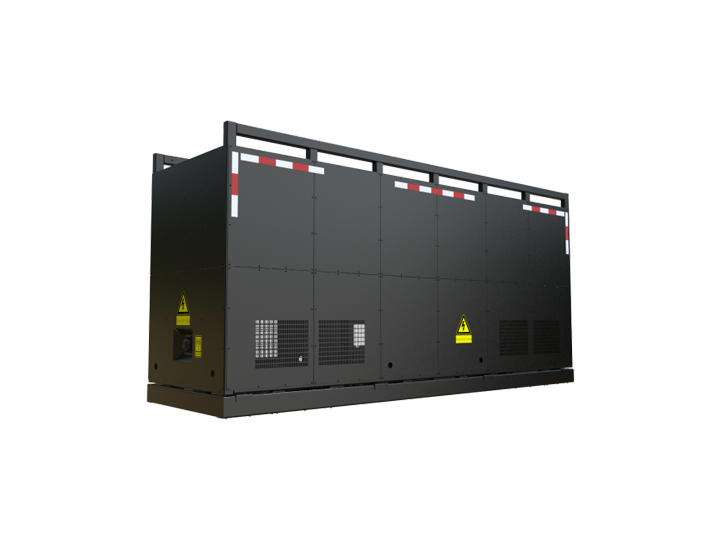

Back Mining Card Battery Replacement

Power Battery Box Assembly | Non Road Series

High battery capacity, supports high current charging and discharging

Pack system and water-cooled unit isolated design, dust free

Integrated charging and swapping design, compatible with mining card platform swapping solutions

The battery capacity can be selected from 426 to 800 degrees, and it is compatible with batteries from different manufacturers

Standardized group products, no need for secondary debugging by car manufacturers

Product Features

1..High capacity with support for high-current charging and discharging

2.Pack system features isolated design from water-cooled units, eliminating dust concerns

3.Integrated charging and swapping design compatible with mining truck battery swap solutions

4.Capacity options ranging from 426 to 800 kWh, compatible with batteries from various manufacturers

5.Standardized packaged products requiring no secondary tuning by vehicle manufacturers

Product Advantages

Adaptability

Meet the product needs of high-end customers for mining scenarios

Discharge capacity

1400A high current charging and discharging capability

Frame structure

Meet the most stringent vibration test spectrum requirements

Platform based architecture

Can adapt to CATL and Qiyuan battery products

Details Parameters

Name	MTP-426	MTP-528
Rated Capacity (kWh)	426.59	528.59
Rated Voltage (V)	618.24	579.6
Rated Charge/Discharge Capacity (A)	650/650	800/1000
Battery Brand	Origin	CATL
Battery Model	CTB	T01
Thermal Management Approach	Water-cooled heat dissipation	Liquid-cooled and liquid-heated
Communication Protocol	GB/T 27930-2015	GB/T 27930-2015
Overall Dimensions (mm)	3500(L)1250(W)1820(H)	3500(L)1250(W)2050(H)
Protection Rating	IP67	IP67
Upper Frame System Weight (t)	5	8
Weight of vehicle-mounted base support system (t)	1.2	1.2

Name	MTP-568	MTP-770	MTP-800
Rated Capacity (kWh)	568.78	770.17	801.24
Rated Voltage (V)	618.24	637.56	618.24/637.56
Rated Charge/Discharge Capacity (A)	800/920	800/1000	800/1000
Battery Brand	Origin	CATL	All Brands
Battery Model	CTB	T01	CTB/D02
Thermal Management Approach	Water-cooled heat dissipation	Liquid-cooled and liquid-heated	Water-cooled heat dissipation
Communication Protocol	GB/T 27930-2015	GB/T 27930-2015	GB/T 27930-2015
Overall Dimensions (mm)	3500(L)1250(W)1820(H)	4300(L)1250(W)1910(H)	3500(L)1250(W)2080(H) 4300(L)1400 (W)1520(H)
Protection Rating	IP67	IP67	IP67
Upper Frame System Weight (t)	6	8	7.6
Weight of vehicle-mounted base support system (t)	1.2	1.5	1.2
