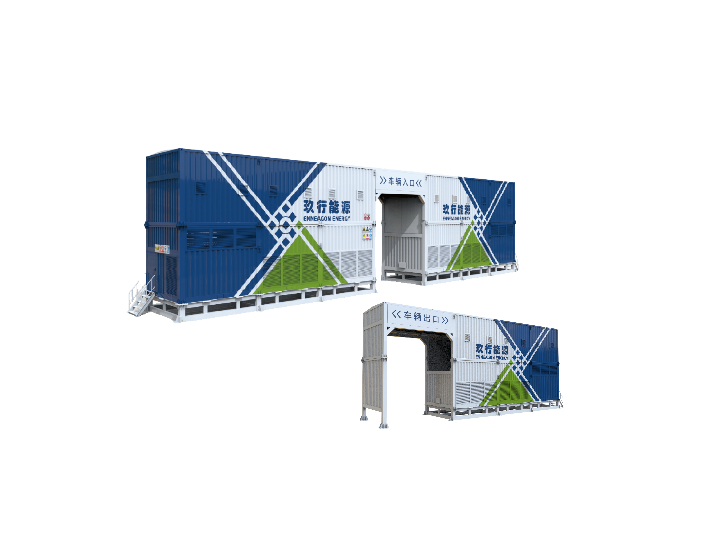

Mining Truck Battery Swap Station

Mining Card Series | Vertical Station

Fully compatible with mining card battery boxes below 1000kWh

Adopting a mature lifting robot solution, the overall cost of the station is low

Separation of charging and replacement for construction, low civil engineering requirements, no foundation pit

Closed design, waterproof, dustproof, moisture control, temperature control, efficient thermal management

Product Features

▪ Separate charging and battery swapping infrastructure with minimal civil engineering requirements and no foundation pits

▪ Enclosed design featuring waterproofing, dustproofing, humidity control, temperature regulation, and efficient thermal management

▪ Fully compatible with mining truck battery boxes under 1000kWh

▪ Utilizes a proven crane-mounted robotic solution for low overall station costs

Product Advantages

Mobile design

Mobile design, fast drop off, quick transition, and quick dismantling of stations

Flexible and diverse combinations

Flexible and diverse combinations, strong adaptability to different scenarios

Closed design

Closed design, waterproof, dustproof, moisture control, temperature control, efficient thermal management

Container Design

Container design, pry loading design

Fully compatible

Fully compatible with mining card battery boxes below 1000kWh

Rated lifting weight

The rated lifting weight of the robot is 10 tons

Flexible charging technology

Flexible charging technology, excellent power sharing mechanism, compatible with multiple charging modes

Charging, replacement, separation and construction

Separation of charging and replacement for construction, low civil engineering requirements, no foundation pit

Details Parameters

Battery Swap Model	Standard	Twin
Battery Swap Time	≤6min	≤4min
Standard Battery	528 / 770 / 800 / 1000 kWh
Design workstation charging capacity	5 bays + 1 transfer bay	10 bays + 2 transfer bay
Service Capability	96 vehicle swaps per day	192 vehicle swaps per day
Charging Cabinet Power Rating	6 × 640 kW	12 × 640 kW
Charging Current	1000 A
Distribution Capacity	3150 kVA	2 × 3150 kVA
Operating Temperature Range	-40℃~55℃
Operating Humidity Range	5%~95%RH
Operating Altitude	≤2000m（High-altitude version ≤4000m）
Wind Resistance Rating	≤ Level 14
Seismic Resistance Grade	Seismic design intensity ≤ 7 degrees，≤0.15g
Whole-Site Protection	New dust-proof door, Temperature control system, LED display, Voice prompts
Standard Edition Dimensions (L × W × H)	20.5 × 4.2 × 7.7 m	32.5 × 4.2 × 7.7 m
