PDU_Shanghai ENNEAGON Energy Technology Co., Ltd

PDU

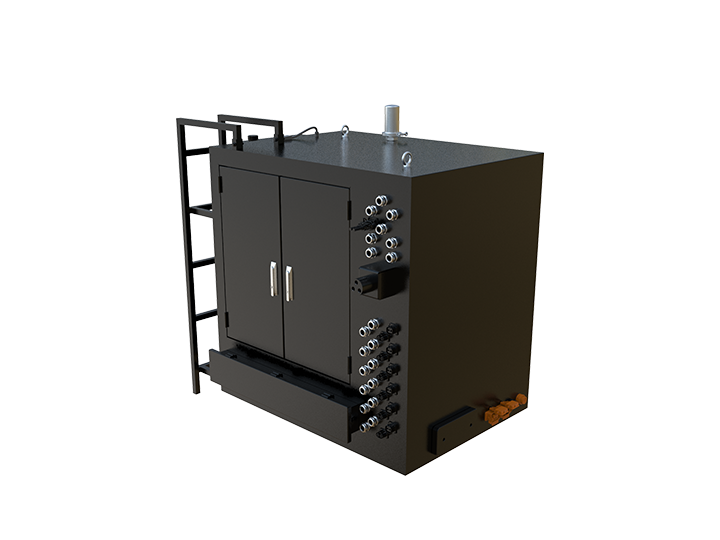

Electric Control System | High Voltage Box (Battery Swapping Version)

Suitable for various types of commercial vehicles, heavy-duty trucks, mining trucks, and construction machinery in multiple fields

Equipped with expansion design, dual charging and dual discharging, supporting integrated charging and discharging solutions

The product adopts platform based development and design, and is compatible with multiple branch inputs

Product Features

1. The protection level of the high-voltage box is ≥ IP67; High voltage cabinet protection level ≥ IP65;

2. Internally equipped with multiple protection functions such as overload, short circuit, overcurrent, overvoltage, and over temperature;

3. Capable of real-time monitoring of the operating status of high-voltage systems;

1. Cleverly integrating multiple control modules greatly reduces the complexity of the system

2. Adopting modular design, it can be combined and spliced as needed, making it convenient for on-site installation, debugging, and maintenance

Product Advantages

High Integration and Modular Design

By ingeniously integrating multiple control modules into a single unit, the system's complexity has been significantly reduced.

High Performance and Intelligence

Responsible for the distribution and management of high-voltage power throughout the vehicle, achieving precise control over each output channel.

Flexibility and Customization

The design structure is flexible and adaptable, allowing for customized development based on different client requirements.

Safe and Reliable

It is equipped with multiple protection functions including overload, short circuit, overcurrent, overvoltage, and overtemperature protection.

Details Parameters

Dimensions	1370 × 1370 × 1270 mm
Single-port Charging Current	1500 A
Dual-port Charging Current	1800 A
Discharge Current	1800 A
Protection Rating	≥IP65
DC Voltage	869.4 V（675-985.5 V）
Number of Branches	6
