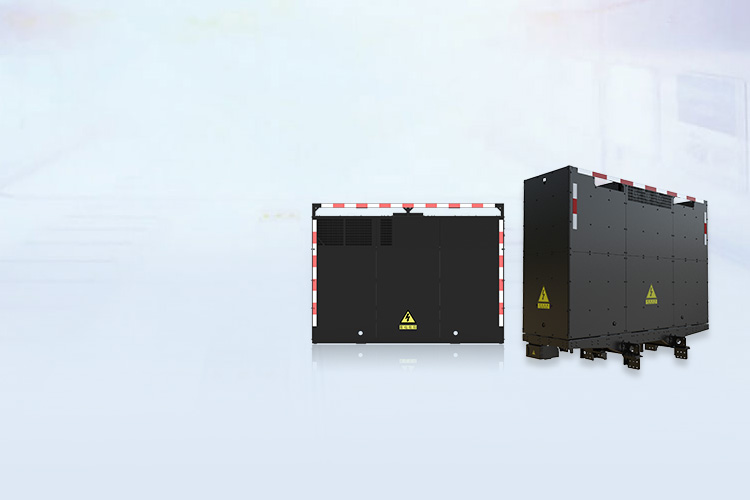

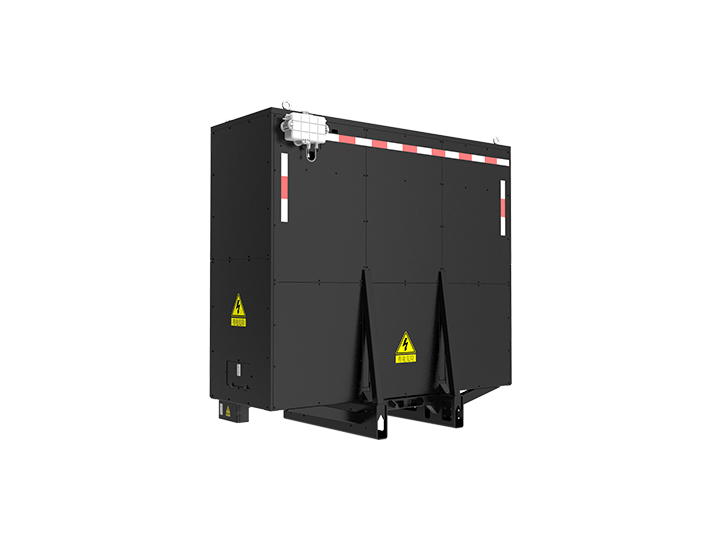

Back-type Charging

Power battery box assembly | Charging Edition Series

Larger battery capacity, lighter weight, smaller size, and lower center of gravity

Support high current charging and discharging

The battery capacity can be selected from 400 to 600 degrees, and it is compatible with batteries from different manufacturers

Standardized group products, no need for secondary debugging by car manufacturers

Product Features

1.Greater capacity, lighter weight, smaller size, lower center of gravity

2.Supports high-current charging and discharging

3.Capacity options from 400 to 600 kWh, compatible with batteries from various manufacturers

4.Standardized packaged products, eliminating the need for secondary tuning by vehicle manufacturers

Product Advantages

High voltage box with charging dock

The height of the high-voltage box is further reduced

Simultaneously compatible with charging dock function

Water chiller compatible with heat pump

Cooperate with the vehicle air conditioning heat pump

Realize integrated thermal management of the entire vehicle

Lower center of gravity

The interlayer spacing of the battery has been reduced to 290mm

Ultimate weight loss

The framework adopts a screw connection scheme

Reduce logistics costs while achieving fast loading

Details Parameters

Name	SLP-C400	SLP-C466
Rated Capacity (kWh)	400.61	465.99
Rated Voltage (V)	618.24	579.6
Rated Charge/Discharge Capacity (A)	400/500	600/500
Battery Brand	CATL	CATL
Battery Model	D06	D04
Thermal Management Approach	Liquid-cooled and liquid-heated	Liquid-cooled and liquid-heated
Communication Protocol	GB/T 27930-2015	GB/T 27930-2015
Overall Dimensions (mm)	2490(L)840(W)1900(H)	2300(L)840(W)2390(H)
Protection Rating	IP67	IP67
Upper Frame System Weight (t)	3.3	4.2

Name	SLP-C528	SLP-C600
Rated Capacity (kWh)	528.13	600.92
Rated Voltage (V)	656.88	618.24
Rated Charge/Discharge Capacity (A)	500/500	400/500
Battery Brand	CATL	CATL
Battery Model	D05	D06
Thermal Management Approach	Liquid-cooled and liquid-heated	Liquid-cooled and liquid-heated
Communication Protocol	GB/T 27930-2015	GB/T 27930-2015
Overall Dimensions (mm)	2490(L)840(W)2390(H)	2490(L)840(W)2160(H)
Protection Rating	IP67	IP67
Upper Frame System Weight (t)	4.6	4.8
