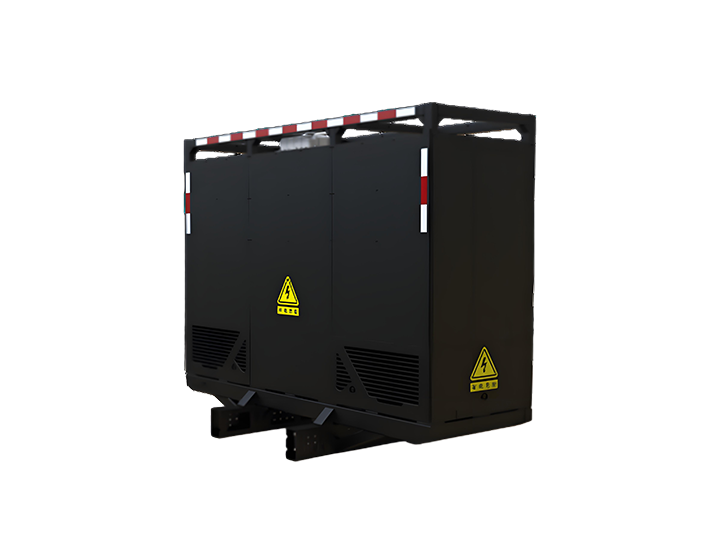

Power Battery Box Assembly | Battery Swap Series

Larger battery capacity, smaller size, and lower center of gravity

Pack system and water-cooling unit isolated design, integrated with dispersed air conditioning

Integrated charging and swapping design, compatible with national standard battery swapping solutions

The battery level can be selected from 282 to 528 degrees, and it is compatible with batteries from different manufacturers

Standardized group products, no need for secondary debugging by car manufacturers

Product Features

Larger battery capacity, smaller size, and lower center of gravity

Pack system and water-cooling unit isolated design, integrated with dispersed air conditioning

Integrated charging and swapping design, compatible with national standard battery swapping solutions

The battery level can be selected from 282 to 528 degrees, and it is compatible with batteries from different manufacturers

Standardized group products, no need for secondary debugging by car manufacturers

Product Advantages

Lighter weight

Compared to products with the same amount of electricity, the weight is reduced by 20-30%, and the product space is optimized by 0.45-1.1m ³

Lower energy consumption

Intelligent and efficient thermal management, using highly integrated modular wiring harnesses and formed pipelines

More stable

Vibration test higher than GB/T 31467.3-2015, strengthened road surface test at 10000km test track

Longer lifespan

The new high resistance locking mechanism holds the upper frame and has been running stably for over 10 years

More secure

Completely independently developed, highly integrated products, and system data can be easily accessed anytime, anywhere

Details Parameters

Name	CVP
Nominal Capacity (kWh)	281.91	350.07
Rated Voltage (V)	618.24	579.6
Rated Charge/Discharge Capacity (A)	400	400
Battery Brand	Applicable to all brands	Applicable to all brands
Battery Model	H-Box/C-Box	C-Box
Thermal Management Approach	Water-cooled heat dissipation	Water-cooled heat dissipation
Communication Protocol	GB/T 27930-2015	GB/T 27930-2015
Overall Dimensions (mm)	2460(L)810(W)2075(H)	2460(L)810(W)2385(H)
Protection Rating	IP67	IP67
Upper Frame System Weight (t)	2.5/2.4	2.9
Weight of vehicle-mounted base support system (t)	0.4	0.4

Name	CVP-CTB
Nominal Capacity (kWh)	284.39	400.62
Rated Voltage (V)	618.24	618.24
Rated Charge/Discharge Capacity (A)	450/460	500/500
Battery Brand	Origin	Origin
Battery Model	RHYC	RHYC
Thermal Management Approach	Liquid-cooled and liquid-heated	Liquid-cooled and liquid-heated
Communication Protocol	GB/T 27930-2015	GB/T 27930-2015
Overall Dimensions (mm)	2495(L)845(W)1560(H)	2495(L)845(W)1820(H)
Protection Rating	IP67	IP67
Upper Frame System Weight (t)	2.6	3.4
Weight of vehicle-mounted base support system (t)	0.4	0.4
