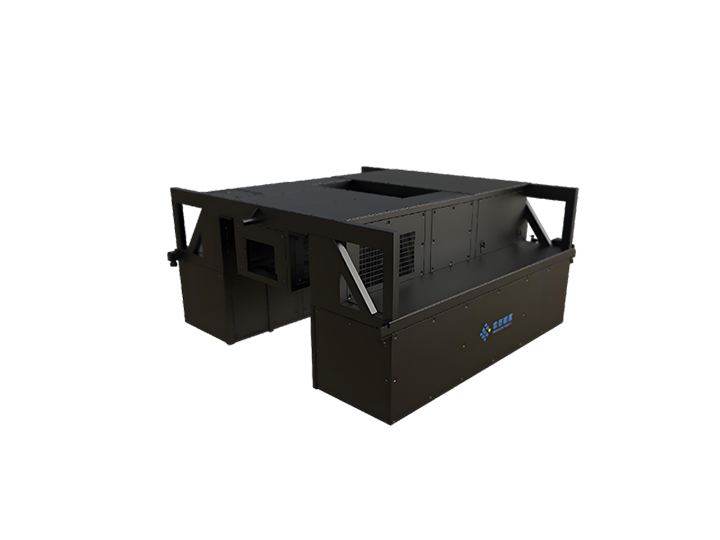

Power Battery Box Assembly | Non Road Series | Port Type

1.Adopting a suspended battery swap system with low height and compact size, specifically designed for port AIV battery swapping

2.Integrated charging and swapping design compatible with batteries from different manufacturers

3.Standardized modular products requiring no secondary debugging by vehicle manufacturers

Product Features

1.Adopting a suspended battery swap system with low height and compact size, specifically designed for port AIV battery swapping

2.Integrated charging and swapping design compatible with batteries from different manufacturers

3.Standardized modular products requiring no secondary debugging by vehicle manufacturers

Product Advantages

Adaptability

Meet the product needs of high-end customers for mining scenarios

Discharge capacity

1400A high current charging and discharging capability

Frame structure

Meet the most stringent vibration test spectrum requirements

Platform based architecture

Can adapt to CATL and Origin battery products

Details Parameters

Name	AIV-282	AIV-352
Rated Capacity (kWh)	281.92	352.08
Rated Voltage (V)	618.24	656.88
Rated Charge/Discharge Capacity (A)	400	450
Battery Brand	CATL	CATL
Battery Model	C01	D05
Thermal Management Approach	Liquid-cooled and liquid-heated	Liquid-cooled and liquid-heated
Communication Protocol	GB/T 27930-2015	GB/T 27930-2015
Overall Dimensions (mm)	2580(L)2632(W)1260(H)	2580(L)2632(W)1260(H)
Protection Rating	IP67	IP67
Upper Frame System Weight (t)	3.0	3.5
Weight of vehicle-mounted base support system (t)	/	/
