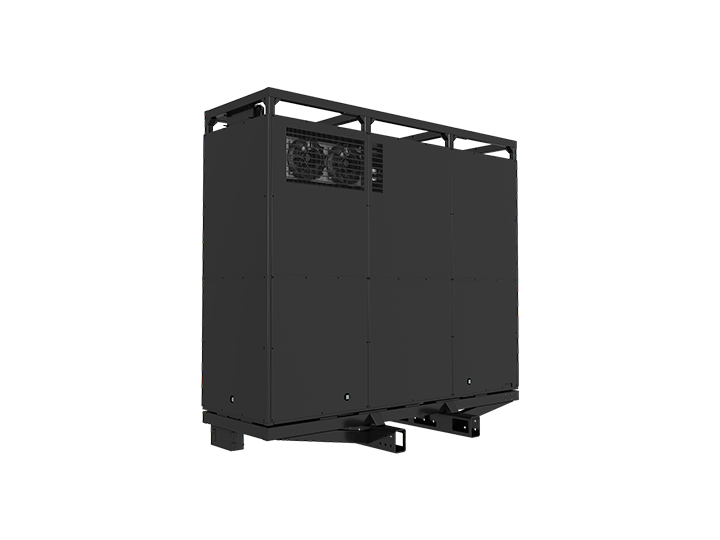

Power Battery Box Assembly | Battery Swap Series

New lightweight design with equal strength, small size

The battery capacity ranges from 282 to 400kWh and is compatible with batteries from different manufacturers

The design of the car's bottom support profile auxiliary beam does not require any changes to the car's beam structure

Standardized group products, no need for secondary debugging by car manufacturers

Product Features

New lightweight design with equal strength, small size

The battery capacity ranges from 282 to 400kWh and is compatible with batteries from different manufacturers

The design of the car's bottom support profile auxiliary beam does not require any changes to the car's beam structure

Standardized group products, no need for secondary debugging by car manufacturers

New lightweight design with equal strength, small size

The battery capacity ranges from 282 to 400kWh and is compatible with batteries from different manufacturers

The design of the car's bottom support profile auxiliary beam does not require any changes to the car's beam structure

Standardized group products, no need for secondary debugging by car manufacturers

Product Advantages

Lighter weight

Compared to products with the same amount of electricity, the weight is reduced by 20-30%, and the product space is optimized by 0.45-1.1m ³

Lower energy consumption

Intelligent and efficient thermal management, using highly integrated modular wiring harnesses and formed pipelines

More stable

Vibration test higher than GB/T 31467.3-2015, strengthened road surface test at 10000km test track

Longer lifespan

The new high resistance locking mechanism holds the upper frame and has been running stably for over 10 years

More secure

Completely independently developed, highly integrated products, and system data can be easily accessed anytime, anywhere

Details Parameters

Name	LHP-282	LHP-350
Rated Capacity (kWh)	281.91	350.07
Rated Voltage (V)	618.24	579.6
Rated Charge/Discharge Capacity (A)	400	400
Battery Brand	Applicable to all brands	Applicable to all brands
Battery Model	H-Box/C-Box	C-Box
Thermal Management Approach	Water-cooled heat dissipation	Water-cooled heat dissipation
Communication Protocol	GB/T 27930-2015	GB/T 27930-2015
Overall Dimensions (mm)	2460(L)810(W)2070(H)	2460(L)810(W)2230(H)
Protection Rating	IP67	IP67
Upper Frame System Weight (t)	2.6/2.6	3.2
Weight of vehicle-mounted base support system (t)	0.4	0.4
